Rc Phase Shift Oscillator Diagram. This then gives us 180 o 180 o 360 o of phase shift which is effectively the same as 0 o thereby giving us the required positive feedback. Here the collector resistor rc limits the collector current of the transistor resistors r 1 and r nearest to the transistor form the voltage divider network while the emitter resistor r e improves the stability.
The frequency of oscillations is given by. The phase shift network in this circuit consists of three rc sections. The circuit diagram of an rc phase shift oscillator is shown above.
Rc phase shift oscillator circuit diagram.

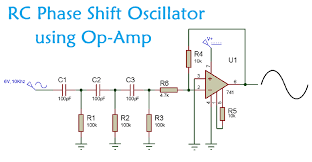

In an rc oscillator circuit the input is shifted 180 o through the feedback circuit returning the signal out of phase and 180 o again through an inverting amplifier stage to produces the required positive feedback. The phase shift oscillator circuit consists of a single transistor amplifier section and a rc phase shift network. The circuit diagram of an rc phase shift oscillator is shown above. Rc phase shift oscillator using opamp.
