Negative Edge Triggered D Flip Flop Circuit Diagram. Jk flip flop can either be triggered upon the leading edge of the clock or on its trailing edge and hence can either be positive or negative edge triggered respectively. This synchronous digital circuit called a d type flip flop forms the basis for registers which are data storage elements.

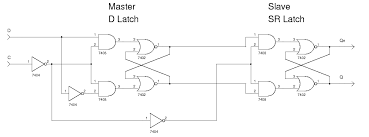

The enable signal is renamed to be the clock signal. A negative edge triggered master slave d flip flop is formed by eliminating first inverter along the clock signal path. The timing diagram of master slave d flip flop is shown below.
The enable signal is renamed to be the clock signal.
The output of the flip flop is set or reset at the negative edge of the clock pulse. The edge triggered d type flip flop with asynchronous preset and clear capability although developed from the basic sr flip flop becomes a very versatile flip flop with many uses. Read input only on edge of clock cycle positive or negative example below. A simple modification will turn the above device in to negative edge triggering device.
