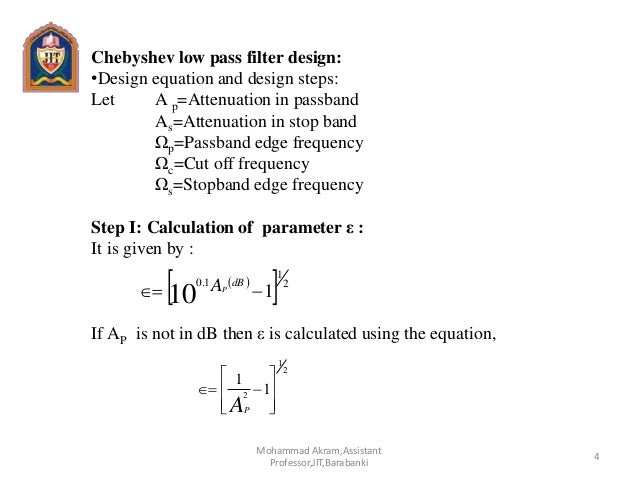

Chebyshev Low Pass Filter Design Example. The gain or amplitude response as a function of angular frequency of the nth order low pass filter is equal to the absolute value of the transfer function evaluated at. Where is the ripple factor is the cutoff frequency and is a chebyshev polynomial of the th order.
The chebyshev filter is named after pafnuty chebyshev who developed the polynomials on which the filter design was based. The current design in this paper describes and explains the pro cedure to design a 5th order low pass chebyshev filter in two dif ferent active topologies. Type i chebyshev filters are the most common types of chebyshev filters.
He was a russian mathematician who lived between 16 may 1821 to 8 december 1894 dates using current calendar using the original julian calendar used in russia at the time he was born on 4 may and died on 26 november.
He was a russian mathematician who lived between 16 may 1821 to 8 december 1894 dates using current calendar using the original julian calendar used in russia at the time he was born on 4 may and died on 26 november. Considering again the fate of the 5 th order 1db ripple chebyshev low pass filter the capacitor values calculated were. Calculate d k d sqrt 1 δ p 2 1 δ s 2 1 0 0487 k ω p ω s 0 6 2. 1 11 1.
