Automatic Water Pump Controller Circuit Diagram. Circuit diagram the automatic pump controller eliminates the need for any manual switching of pumps installed for the purpose of pumping water from a reservoir to an overhead tank refer fig. Automatic water pump controller has been viewed 2319 times which last viewed at 2020 12 23 02 18 22 and has been downloaded 20 times which last downloaded at 2016 05 02 17 00 13 revealed by amelia on 19 mar 2014.

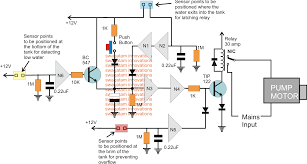

Automatic water pump controller has been viewed 2319 times which last viewed at 2020 12 23 02 18 22 and has been downloaded 20 times which last downloaded at 2016 05 02 17 00 13 revealed by amelia on 19 mar 2014. Automatic water pump controller circuit diagram here is a very useful project of an automatic water pump controller circuit. Automatic water level controller circuit leaf switches s1 and s2 used in tape recorders are fixed at the top of the sensor units such that when the floats are lifted the attached 5mm dia.
A simple but very reliable and effective automatic water pump controller circuit diagram is shown here which able to stop the motor pump automatically when the tank is full.

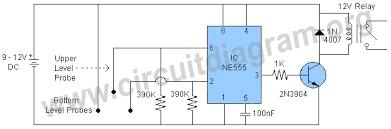

The circuit uses 1 transistor 1 ne555 timer ic a relay and few passive components. I made with ic555 and ic uln2003. The circuit uses 1 transistor 1 ne555 timer ic a relay and few passive components. Let us consider two reference probes a and b inside the tank where a is the lower limit probe and b is the upper limit probe.
