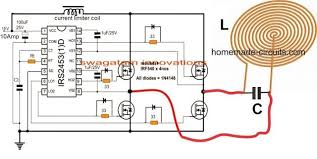

12v Induction Heater Circuit Diagram. The duty control of the pwm circuit is inverted compared to the output power of the heater. This diagram shows the addition of 2 diodes to the circuit so that it can be linked to one of our pwm control circuits for adjusting the power of the induction heater.

Simple Induction Heater Circuit Hot Plate Cooker Circuit Electronic Circuit Projects Induction Heating Electronic Circuit Projects Electronic Schematics
Simple Induction Heater Circuit Hot Plate Cooker Circuit Electronic Circuit Projects Induction Heating Electronic Circuit Projects Electronic Schematics from www.pinterest.com

Typically the circuit and load. A simple alternative to this may be in the form of bc547 transistors connected instead of the diodes as shown in the following diagarm. An induction heater consists of an electromagnet and an electronic oscillator that passes a high frequency alternating current through the electromagnet you will get full explanation about 12v induction heater circuit diagram below and with only a few modifications we can use same circuit for a induction soldering iron 2nd circuit.

In the above induction heater circuit diagram we can see the mosfets gates consisting of fast recovery diodes which might be difficult to obtain in some parts of the country.

10k x 2 470 ohm x 2 diode. In the above induction heater circuit diagram we can see the mosfets gates consisting of fast recovery diodes which might be difficult to obtain in some parts of the country. Connection diagram for centre tapped coils. 1n4007 x 2 inductor core from computer power supply capacitor.
